Products

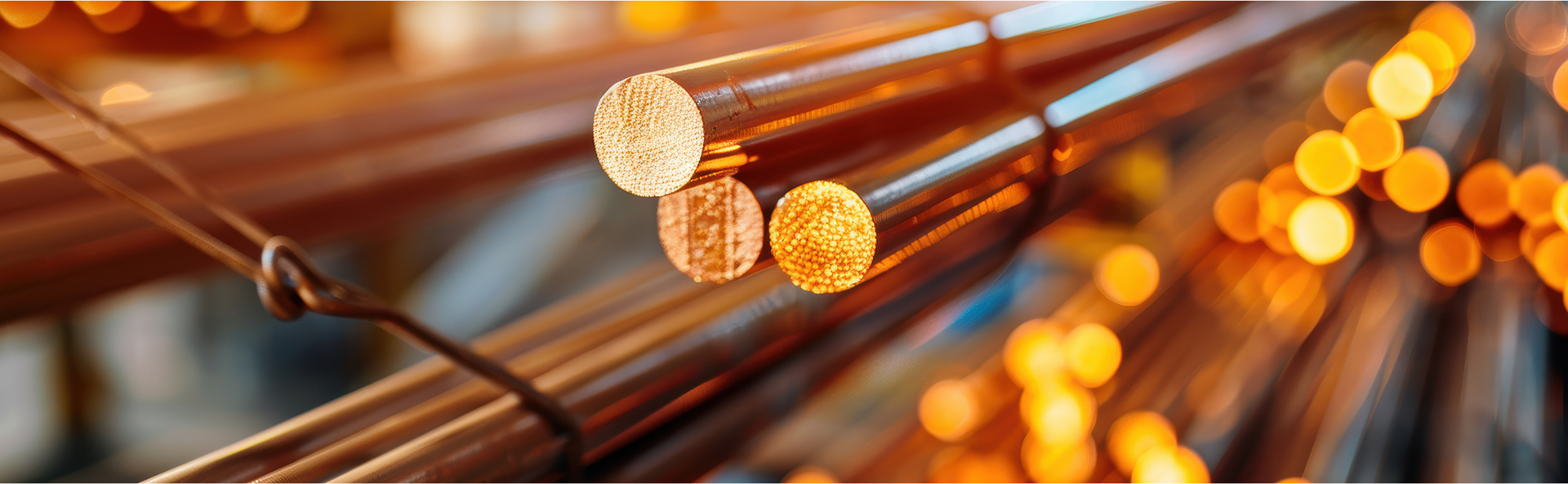

Construction TMT Bars

Corrosion-resistant,
earthquake resistant,
ductile, and superior
welding strength!

We produce FE500, FE500D, FE550D, CRS grades from 6mm to 32mm of wide range. We have “D” graded steel bars. TMR/QST bars having this grade mean more flexibility and strength. Our bars assure phenomenal quality in all types of building construction.

Standard Weight & bundle weight

Size (M.M)	ISI Standard Weight Kg/Mtr	Stallion TMT Standard Weight Kg/Mtr	ISI Tolerance Limit Kg/Mtr	Stallion TMT Tolerance Limit Kg/Mtr	No. of Pcs. Per 40 Ft. Bundle	Weight Per Bundle in Kg.
8	0.395	0.375	0.367 - 0.423	0.368 - 0.385	15	70
10	0.617	0.580	0.574 - 0.660	0.575 - 0.585	10	70
12	0.888	0.850	0.844 - 0.932	0.845 - 0.860	07	73
16	1.580	1.510	1.500 - 1.659	1.500 - 1.530	04	74
20	2.470	2.400	2.395 - 2.544	2.400 - 2.425	0.2	59
25	3.850	3.770	3.735 - 3.965	3.740 - 3.790	0.1	46
28	4.830	4.720	4.685 - 4.975	4.700 - 4.780	0.1	58
32	6.310	6.200	6.121 - 6.499	6.150 - 6.250	0.1	75

Mechemical Properties

Properties	Fe - 500 (IS:1786- 2008)	Stallion 500	Fe - 500D (IS:1786- 2008)	Stallion 500D	Fe - 550 (IS:1786- 2008)	Stallion 550	Fe - 550D (IS:1786- 2008)	Stallion 550D
Yield Stress, N/mm² (min)	500	520	500	520	550	560	550	560
Tensile Strength, N/mm² (min)	545	630	565	630	585	660	600	660
Elongation, N/mm² (min)	12	16	16	16	10	10	14.5	16
Stress Ratio, N/mm² (min)	1.08	1.15	1.10	1.15	1.06	1.15	1.08	1.15

Chemical Properties

Elements	Fe - 500 (IS:1786- 2008)	Stallion 500	Fe - 500D (IS:1786- 2008)	Stallion 500D	Fe - 550 (IS:1786- 2008)	Stallion 550	Fe - 550D (IS:1786- 2008)	Stallion 550D
Carbon (%) Max	0.30	0.25	0.25	0.23	0.30	0.25	0.25	0.23
Sulphur (%) Max	0.055	0.050	0.040	0.040	0.055	0.050	0.040	0.040
Phosphorus (%) Max	0.055	0.050	0.040	0.040	0.050	0.050	0.040	0.040
S + P (%) Max	0.105	0.105	0.075	0.075	0.100	0.100	0.075	0.075
Carbon EQ (%) Max	0.42	0.42	0.42	0.42	0.42	0.42	0.42	0.42
