Strong bonds,
Stronger buildings
About Us
Building a Resilient
Future, Forging a
Developed India By 2047.
RRR Steel Rolling Mills Pvt Ltd is a venture of a renowned textile house , having over 4 decades young robust experience in domestic & International markets (8-10 countries ) in yarn manufacturing. RRR Steel Rolling Mills Pvt Ltd, established as a steel TMT bars manufacturing facility, is located at village Paladi, taluka Waghodia in Vadodara District. The manufacturing facility is an advanced Continuous straight rolling mill, incorporating state of the art technology with ThermEx quenching system, with a capacity to produce 2,00,000 MT per annum of high-quality ‘STALLION TMT’ Bars. (BIS: 1786:2008)
Targeting a
$30
Trillion Economy
1,00,000 sft
Manufacturing
Facility
2,00,000 MT
per annum
Production
50+
Professional
Engineers
Products

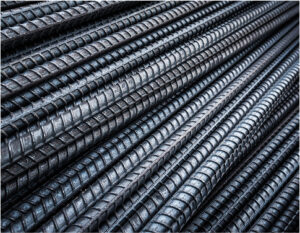

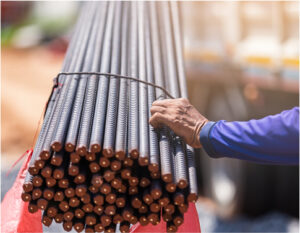

Stallion Tmt Is The New
Generation High Strength
Ribbed Reinforcement Bars.
The entire process is fully automated with least human interference to attain standards required for Best Quality as designated by BIS norms. This TMT Bars are manufactured using this unique iron & steel making and hot rolling, which makes them stronger, safer and more ductile than any other TMT bar in the market segment.
Chemical Properties
| Elements | Fe - 500 (IS:1786- 2008) |
Stallion 500 |
Fe - 500D (IS:1786- 2008) |
Stallion 500D |
Fe - 550 (IS:1786- 2008) |
Stallion 550 |
Fe - 550D (IS:1786- 2008) |
Stallion 550D |
|---|---|---|---|---|---|---|---|---|
| Carbon (%) Max | 0.30 | 0.25 | 0.25 | 0.23 | 0.30 | 0.25 | 0.25 | 0.23 |
| Sulphur (%) Max | 0.055 | 0.050 | 0.040 | 0.040 | 0.055 | 0.050 | 0.040 | 0.040 |
| Phosphorus (%) Max | 0.055 | 0.050 | 0.040 | 0.040 | 0.050 | 0.050 | 0.040 | 0.040 |
| S + P (%) Max | 0.105 | 0.105 | 0.075 | 0.075 | 0.100 | 0.100 | 0.075 | 0.075 |
| Carbon EQ (%) Max | 0.42 | 0.42 | 0.42 | 0.42 | 0.42 | 0.42 | 0.42 | 0.42 |
Mechemical Properties
| Properties | Fe - 500 (IS:1786- 2008) |
Stallion 500 |
Fe - 500D (IS:1786- 2008) |
Stallion 500D |
Fe - 550 (IS:1786- 2008) |
Stallion 550 |
Fe - 550D (IS:1786- 2008) |
Stallion 550D |
|---|---|---|---|---|---|---|---|---|
| Yield Stress, N/mm² (min) | 500 | 520 | 500 | 520 | 550 | 560 | 550 | 560 |
| Tensile Strength, N/mm² (min) | 545 | 630 | 565 | 630 | 585 | 660 | 600 | 660 |
| Elongation, N/mm² (min) | 12 | 16 | 16 | 16 | 10 | 10 | 14.5 | 16 |
| Stress Ratio, N/mm² (min) | 1.08 | 1.15 | 1.10 | 1.15 | 1.06 | 1.15 | 1.08 | 1.15 |
| - | - | - | - | - | - | - | - | - |
Chemical Properties
| Elements | Fe - 500 (IS:1786- 2008) |
Stallion 500 |
Fe - 500D (IS:1786- 2008) |
Stallion 500D |
Fe - 550 (IS:1786- 2008) |
Stallion 550 |
Fe - 550D (IS:1786- 2008) |
Stallion 550D |
|---|---|---|---|---|---|---|---|---|
| Carbon (%) Max | 0.30 | 0.25 | 0.25 | 0.23 | 0.30 | 0.25 | 0.25 | 0.23 |
| Sulphur (%) Max | 0.055 | 0.050 | 0.040 | 0.040 | 0.055 | 0.050 | 0.040 | 0.040 |
| Phosphorus (%) Max | 0.055 | 0.050 | 0.040 | 0.040 | 0.050 | 0.050 | 0.040 | 0.040 |
| S + P (%) Max | 0.105 | 0.105 | 0.075 | 0.075 | 0.100 | 0.100 | 0.075 | 0.075 |
| Carbon EQ (%) Max | 0.42 | 0.42 | 0.42 | 0.42 | 0.42 | 0.42 | 0.42 | 0.42 |
Mechemical Properties
| Properties | Fe - 500 (IS:1786- 2008) |
Stallion 500 |
Fe - 500D (IS:1786- 2008) |
Stallion 500D |
Fe - 550 (IS:1786- 2008) |
Stallion 550 |
Fe - 550D (IS:1786- 2008) |
Stallion 550D |
|---|---|---|---|---|---|---|---|---|
| Yield Stress, N/mm² (min) | 500 | 520 | 500 | 520 | 550 | 560 | 550 | 560 |
| Tensile Strength, N/mm² (min) | 545 | 630 | 565 | 630 | 585 | 660 | 600 | 660 |
| Elongation, N/mm² (min) | 12 | 16 | 16 | 16 | 10 | 10 | 14.5 | 16 |
| Stress Ratio, N/mm² (min) | 1.08 | 1.15 | 1.10 | 1.15 | 1.06 | 1.15 | 1.08 | 1.15 |
| - | - | - | - | - | - | - | - | - |
MANUFACTURING PROCESS
